+ HIGHLIGHTS

+ True Three Level Rectifier and Inverter Technology

+ Ultra High Output Galvanic Isolation Transformer Embedded

+ Robust and Reliable Design

Highest Reliability with Embedded Isolation Transformer

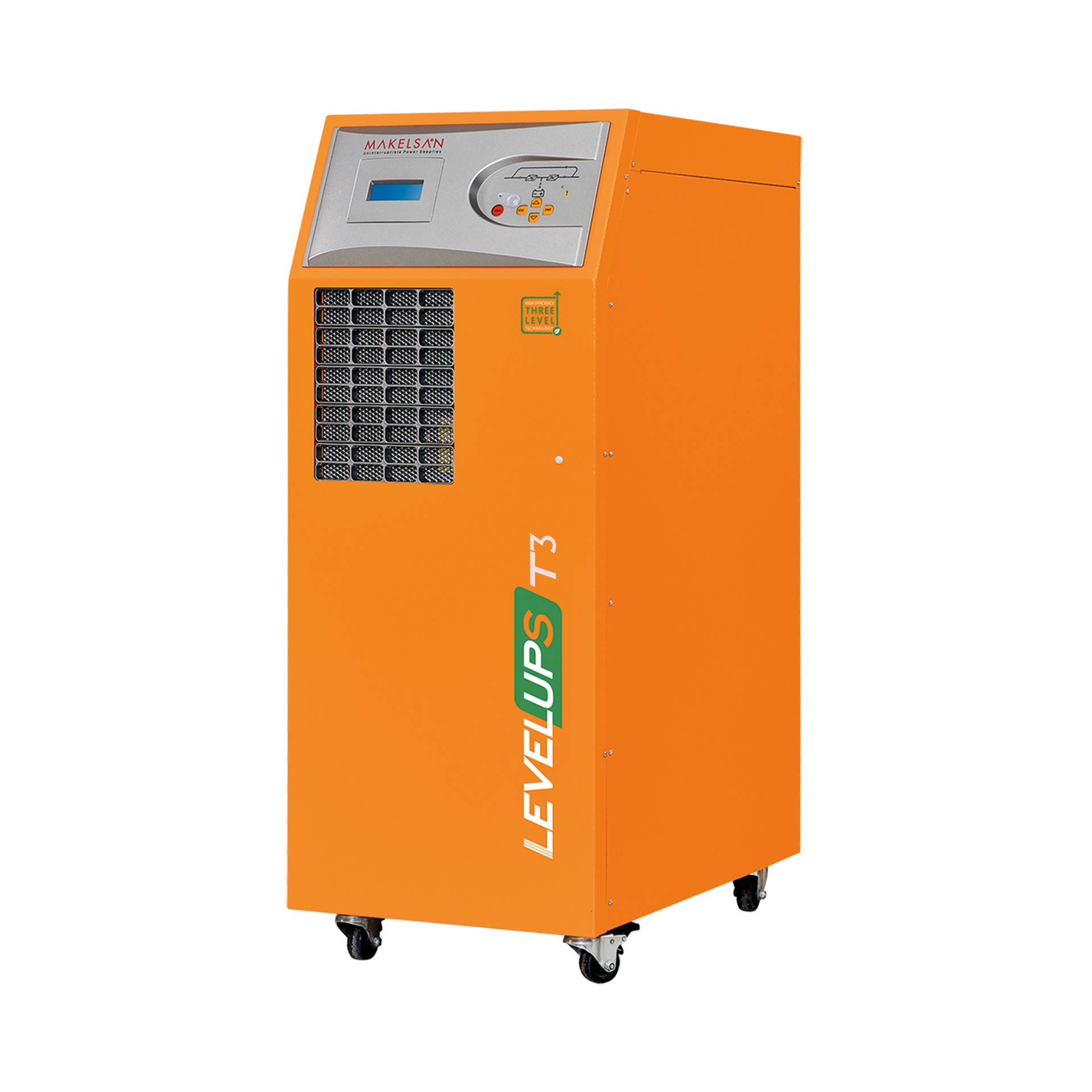

    - LEVELUPS T3 series is a true VFI on-line double conversion, three-phase UPS system with innovative 3 level technology and engineered to provide high level of energy efficiency and reliable and robust protection for most demanding industrial and medical environments.

    - Three level inverter and rectifier technology and with embedded isolation transformer makes LEVELUPS T3 series one of the most reliable systems for data security and other critical applications.

Compact Design

    - Designed with an Integrated transformer ensuring galvanic isolation on the output for ultimate safe installation.

    - Easy to install and service and can be integrated into harsh commercial and industrial environments.

    - Compact footprint and matching battery cabinets.

Low Total Cost of Ownership

    - Less energy consumption to supply the loads thanks to high efficiency.

    - Reduced energy loss.

    - Reduced electricity usage and air conditioning requirements.

    - Reduction in operating cost of UPS.

    - IGBT based power factor correction technology provides input power factor close to 1 (≥ 0,99). The high input power leads to reduced electricity pay-out, minimizes cable, switchboard, fuse and generator requirements, thus reducing investment cost.

    - Low input current total harmonic distortion (THDi) less than%3 helps to avoid the disturbance and expensive harmonic filters.

    - Small footprint and easy maintenance

High Output Power Factor 1

    - Output power factor of 1 (kVA=kW) rate provides up to 25% more active power than a traditional UPS.

    - Suitable for modern power supply application with unit or capacitive power factor (e.g. new servers generation)

    - No reduction in active power from 0,9 leading to 0,9 lagging

Maximum Availability

    - Parallel configuration up to 8 units per redundancy (N+1) and power increase.

    - Loop connection helps the UPS system to continue the operation when the connection cable is inturrupted.

Standard Electrical Features

    - Parallel-Redundant (N+X) Systems

    - Output Galvanic Isolation Transformer Embedded

    - Dual Input

    - Common Battery

    - Frontal Access for Input/Output Cabling

    - Backfeed Protection

    - Cold Start (Optional)

    - Advanced Battery Management

    - Short Circuit and Overload Protection

    - Parallel Ready Redundant Power Supply

    - Power Walk-in for Progressive Rectifier Start-up when the Mains is Restored

    - Battery Temperature Sensor

    - Static & Manual Bypass Operation

Advanced Communication Features

    - 1500 Real Time Event Log with Detailed Parameters

    - User Friendly Multilingual 320x240 Graphic Display Provides Operation Information

    - Monitoring and Shutdown Software

    - RS232 Serial and RS485 Ports

    - 2 Communication Slots

    - ModBUS RTU / ModBUS TCP (Optional)

    - Remote Emergency Power Off (Optional)

    - Remote Display Panel (Optional)

    - Dry Contact (Optional)

    - SNMP (Optional)

    - Profibus (Optional)

Flexibility

    - Optional IP31, IP41, Protection degree for harsh environments.

    - Optional tropicalization and anti-corrosion protection for electronic boards.

    - Optional temperature sensor for external battery cabinets for extended runtimes.

    - External battery cabinets for different sizes of batteries to provide extended runtimes.

    - Adaptability to the mains without neutral.
